CORiTEC 150i PRO
Brand :
Imes-icore
Product Type :
dental CAD/CAM milling unit

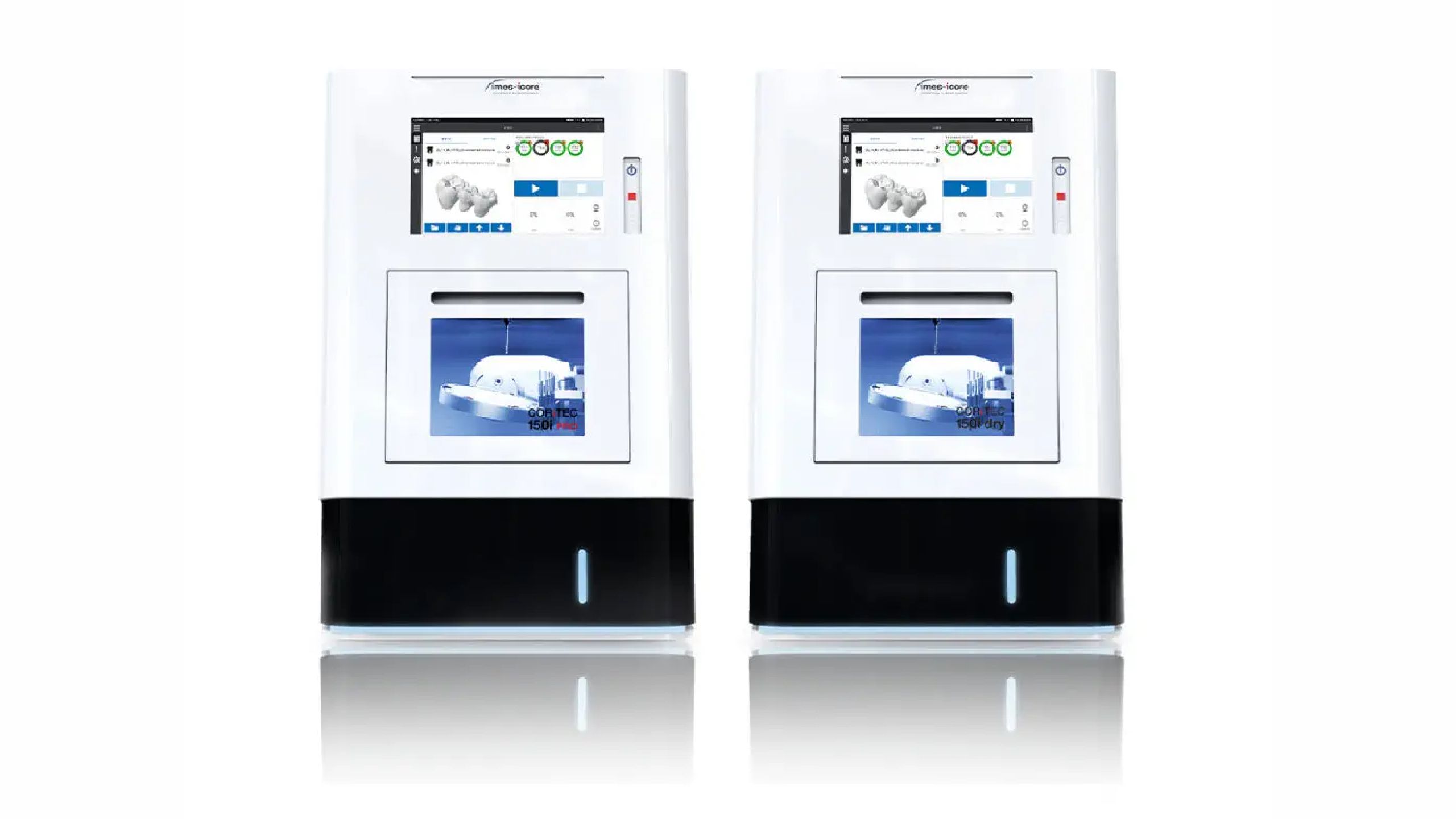

The CORiTEC 150i PRO is an entry-level 5-axis CAD/CAM milling machine developed for small and medium-sized dental laboratories. Its compact all-in-one design combines wet and dry processing, manual quick clamping, autocalibration and an integrated ionizer option, providing a practical route into digital manufacturing.
Key Features
5-axis simultaneous machining with 360° A-axis and 130° B-axis rotation
Wet and dry processing in one machine for a broad range of dental materials
100,000 rpm / 860 W high-frequency spindle
10-fold tool changer for 3 mm-shaft milling and grinding tools
Manual quick clamping system
Autocalibration option for simplified setup and consistent processing
Integrated ionizer option
Automated cleaning function
Integrated control PC with 10.1-inch touchscreen and dynamic LED illumination
Closed mono-block cast body designed for stable, low-vibration machining
Designed for zirconia, hybrid materials, CoCr and Ti pre-milled abutments, polymers/plastics and glass ceramics
Applications
Dental CAD/CAM milling of crowns, bridges, frameworks, inlays, onlays, veneers, splints and other compatible restorations
processing of compatible pre-milled abutments and dental materials.
Technical Specifications
Axes / operation: 5 axes, simultaneous processing
A-axis rotation: 360°
B-axis rotation: 130°
Spindle: high-frequency spindle, maximum 100,000 rpm / 860 W
Spindle cooling: air cooled
Clamping: manual quick clamping system
Tools: milling and grinding tools with 3 mm shaft
Tool changer: 10-fold
Tool length control: ≤ 0.002 mm precision
Software: SmartControl™, Windows based
Control: integrated control PC / 10.1-inch touchscreen
Air pressure: 3 bar / 43.51 psi at 50 l/min
Coolant tank: 3 l / 0.8 gal
Weight: 75 kg
Dimensions: 422 × 556 × 644 mm (16.6 × 21.9 × 25.4 in)
Line voltage / frequency: 100–240 V / 50/60 Hz
