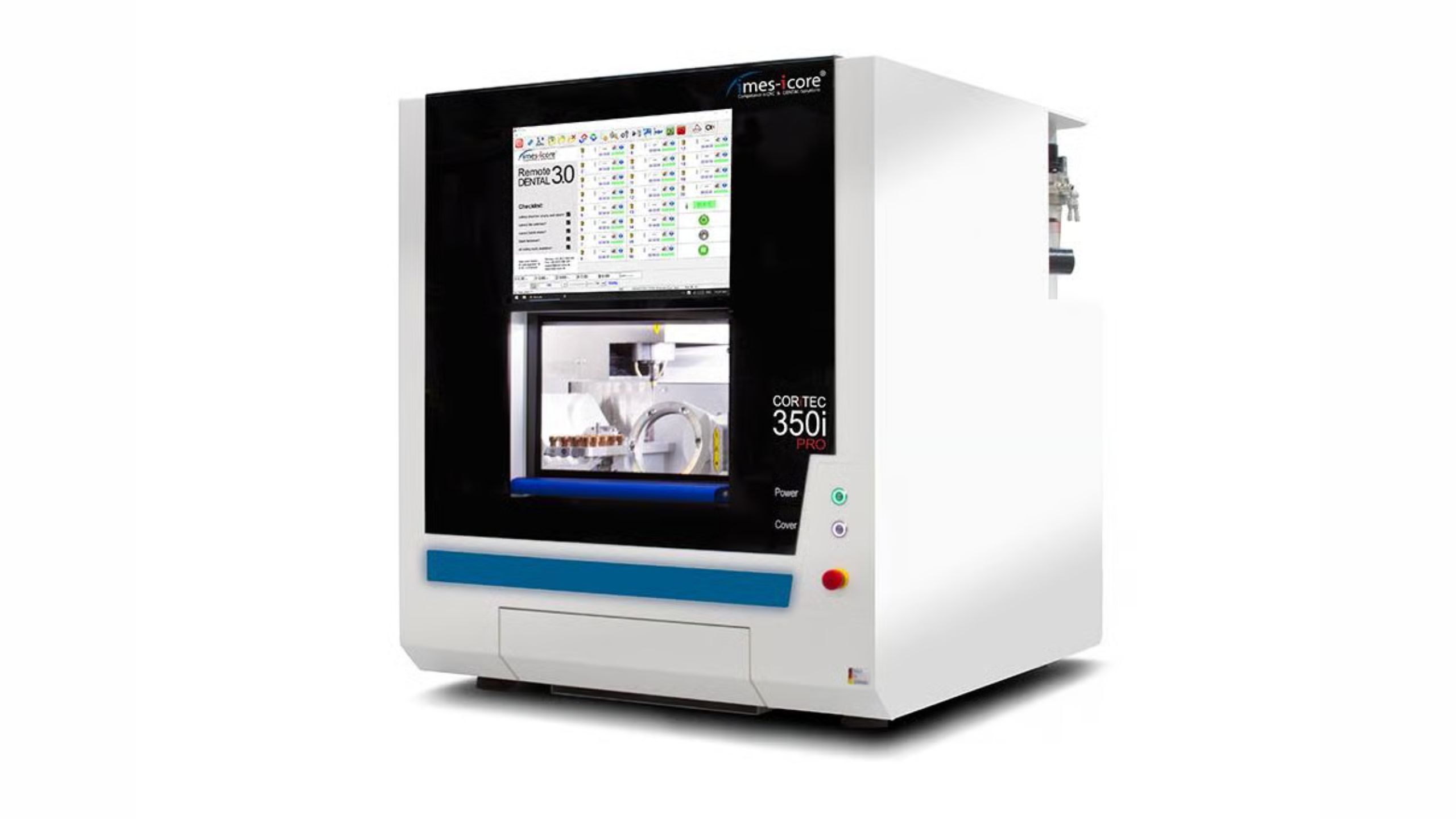

CORiTEC 350i PRO
Brand :
Imes-icore
Product Type :
dental CAD/CAM milling unit
The CORiTEC 350i PRO is a professional 5-axis CAD/CAM milling platform for dental laboratories requiring high stability, material flexibility and reliable production. Its polymer-concrete base, industrial zero-point clamping, high-frequency spindle options and integrated wet/dry processing are designed for demanding laboratory workflows.
Key Features
5-axis simultaneous machining with 360° A-axis and 115° B-axis
PRO version with 1.0 kW air-cooled spindle up to 60,000 rpm
PRO+ version with 2.6 kW water-cooled spindle, three hybrid bearings and self-cleaning collet
Integrated wet and dry processing
Industrial zero-point clamping system for fast, precise holder and blank changes
Polymer-concrete machine base for stability and vibration damping
Up to 20% shorter milling times claimed in the supplied brochure
Highly dynamic servo drives with motor resolution of 0.15 µm
20-fold tool changer with 6 mm-shaft tools
Manual or 12-fold automatic blank changer depending on configuration
Temperature compensation and automated cleaning
Optional ionizer
RemoteDental 3.0 Windows-based software with integrated 15.6-inch Full HD touchscreen
RGB LED status illumination
Applications
High-volume dental CAD/CAM production including crowns, bridges, frameworks, implant components, full dentures, splints, bars and demanding CoCr/titanium applications
wet and dry milling and grinding of compatible materials.
Technical Specifications
Basic structure: polymer concrete
Axes / operation: 5 axes, simultaneous processing
A-axis rotation: 360°
B-axis rotation: 115°
Spindle: high-frequency; PRO 60,000 rpm / 1.0 kW; PRO+ 60,000 rpm / 2.6 kW
Spindle cooling: PRO air cooled; PRO+ water cooled
Spindle bearings: PRO 2 hybrid bearings; PRO+ 3 hybrid bearings
Collet: 6 mm; PRO+ self-cleaning collet
Blank changer: manual; Loader versions support up to 12 blanks
Holder: aluminum holder on Loader PRO; stainless-steel holder on Loader PRO+
Tools: milling and grinding tools with 6 mm shaft
Tool changer: 20-fold
Tool length control: ≤ 0.002 mm accuracy
Software: RemoteDental 3.0, Windows based
Control: integrated control PC / 15.6-inch Full HD touchscreen
Air pressure: 6.0–9.0 bar / 87–130 psi at 80 l/min
Coolant tank: 4.8 l / 1.27 gal
Weight: 205 kg PRO; 250 kg Loader PRO; 210 kg PRO+; 255 kg Loader PRO+
Dimensions PRO/PRO+: 758 × 790 × 857 mm (29.8 × 31.1 × 33.7 in)
Dimensions Loader versions: 1058 × 790 × 857 mm (41.7 × 31.1 × 33.7 in)
Line voltage / frequency: 100–240 V / 50/60 Hz; loader versions 110–240 V / 50/60 Hz
