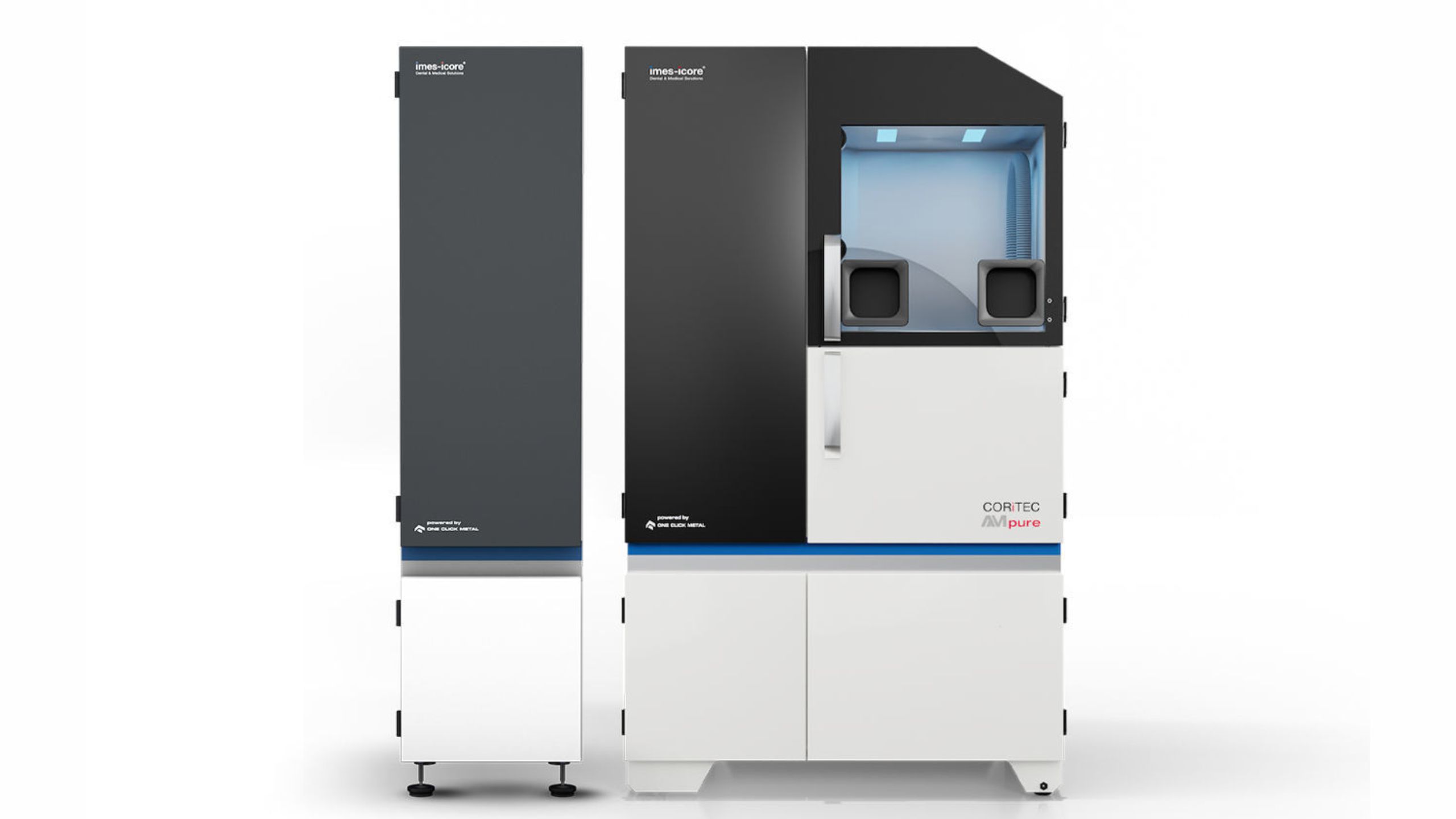

CORiTEC AM100 dental product

CORiTEC AM100

Brand :

Imes-icore

Product Type :

Metal 3D Printers

The CORiTEC AM100 is a compact metal 3D printer for additive dental production using Laser Powder Bed Fusion (LPBF). With a 200 W fiber laser, a 150 × 150 × 150 mm build volume and production capacity of up to 250 tooth units per processing cycle, it is designed for efficient production of complex dental frameworks, crowns, bridges and other metal dental constructions.

Key Features

  • Laser Powder Bed Fusion (LPBF) metal 3D printing technology

  • 200 W fiber laser with 70 µm focus diameter

  • Build volume of 150 × 150 × 150 mm

  • Layer height range of 20–80 µm

  • Scanning speed up to 3,000 mm/s

  • Production of up to 250 tooth units per processing cycle

  • Innovative cartridge-based powder supply system

  • Up to 5 supply cartridges

  • Intelligent ultrasonic sieving for powder preparation and recycling

  • CORiTEC AMpure unpacking station enables controlled unpacking with integrated gloves and ultrasonic sieving

  • CORiTEC AMpure lite provides a space-saving modular powder-recycling option

  • Web-based process monitoring and intuitive graphical user interface

  • iCAM AM CAM/slicing software

  • Designed for CoCr and Ti dental powders

  • Remote HMI access and guided six-step workflow

Applications

  • Additive production of dental crowns and bridges in CoCr and Ti

  • Production of inlays, onlays and veneers using compatible dental alloys

  • Model-cast framework production

  • Telescope and primary/secondary framework applications

  • Production of dental abutments and implant prosthetic components

  • Complex customised dental constructions using laser powder bed fusion

Technical Specifications

  • Printing method: LPBF (Laser Powder Bed Fusion)

  • Powder application: X profile

  • Laser: 200 W fiber laser

  • Focus diameter: 70 µm

  • Scanning speed: up to 3,000 mm/s

  • Build volume: 150 × 150 × 150 mm (5.9 × 5.9 × 5.9 in)

  • Layer height: 20–80 µm

  • Powder supply: up to 5 supply cartridges

  • CAM/slicing software: iCAM AM

  • Power supply: 110–230 V, 50–60 Hz

  • Fuse: 16 A

  • Inert gas: nitrogen

  • Filter: replaceable gas filter

  • Dimensions (W × D × H): 1,100 × 790 × 1,900 mm (43.3 × 31.1 × 74.8 in)

  • Weight: 440 kg

  • Compatible powder materials: CoCr / Ti
