FabCure 2
Brand :
Shining 3D
Product Type :
3D Printing Post-Processing

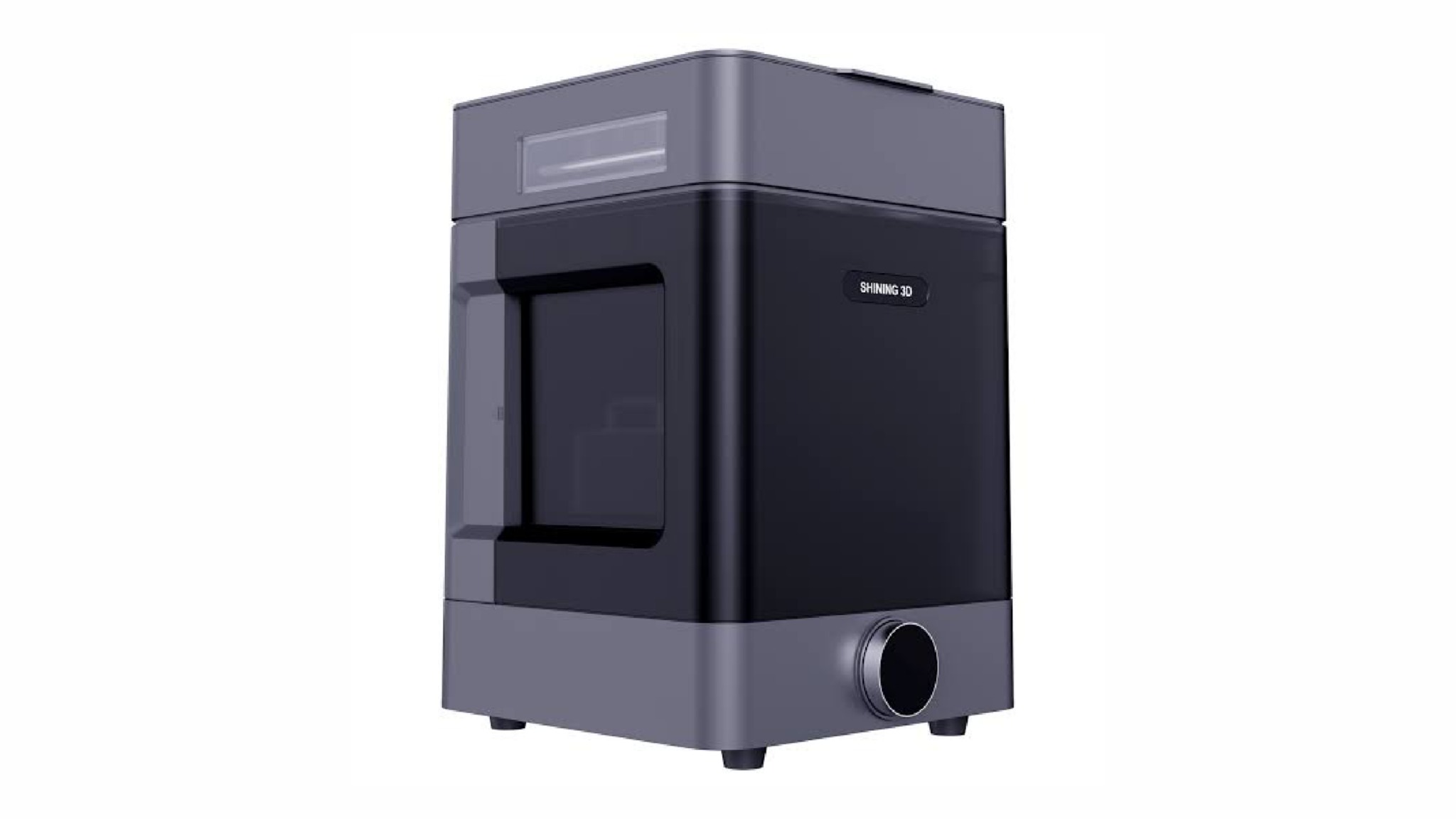

FabCure 2 is a smart, cloud-connected post-curing machine utilizing 30 multi-directional LEDs and a ceramic heating module to lock in optimal material properties.
Key Features
30 multi-directional UV LEDs for multi-surface curing
70 W LED curing power
Ceramic heating module with temperature sensors
Chamber temperature control up to 60 °C
Curing volume up to Ø210 × H180 mm
Predefined curing profiles for Shining 3D resins
Custom curing parameter support
Wi-Fi-connected smart material library and over-the-air updates
OLED screen with integrated control knob
Applications
Post-curing of compatible 3D-printed dental resin parts
Controlled light and temperature post-curing of printed dental components
Final polymerization of compatible 3D-printed resin materials
Post-processing of 3D-printed dental models, appliances and components according to resin manufacturer protocols
Technical Specifications
Dimensions (W × D × H): 290 × 290 × 367.5 mm
Weight: 10.5 kg
Curing volume: Ø210 mm × H180 mm
Operating temperature: 10–30 °C
Maximum curing temperature: 60 °C
Light source: UV LED
Wavelength: 385–405 nm
LED power: 70 W
Power: AC 100–240 V, 150 W
Connectivity/interface: Wi-Fi
