FabWash
Brand :
Shining 3D
Product Type :
3D Printing Post-Processing

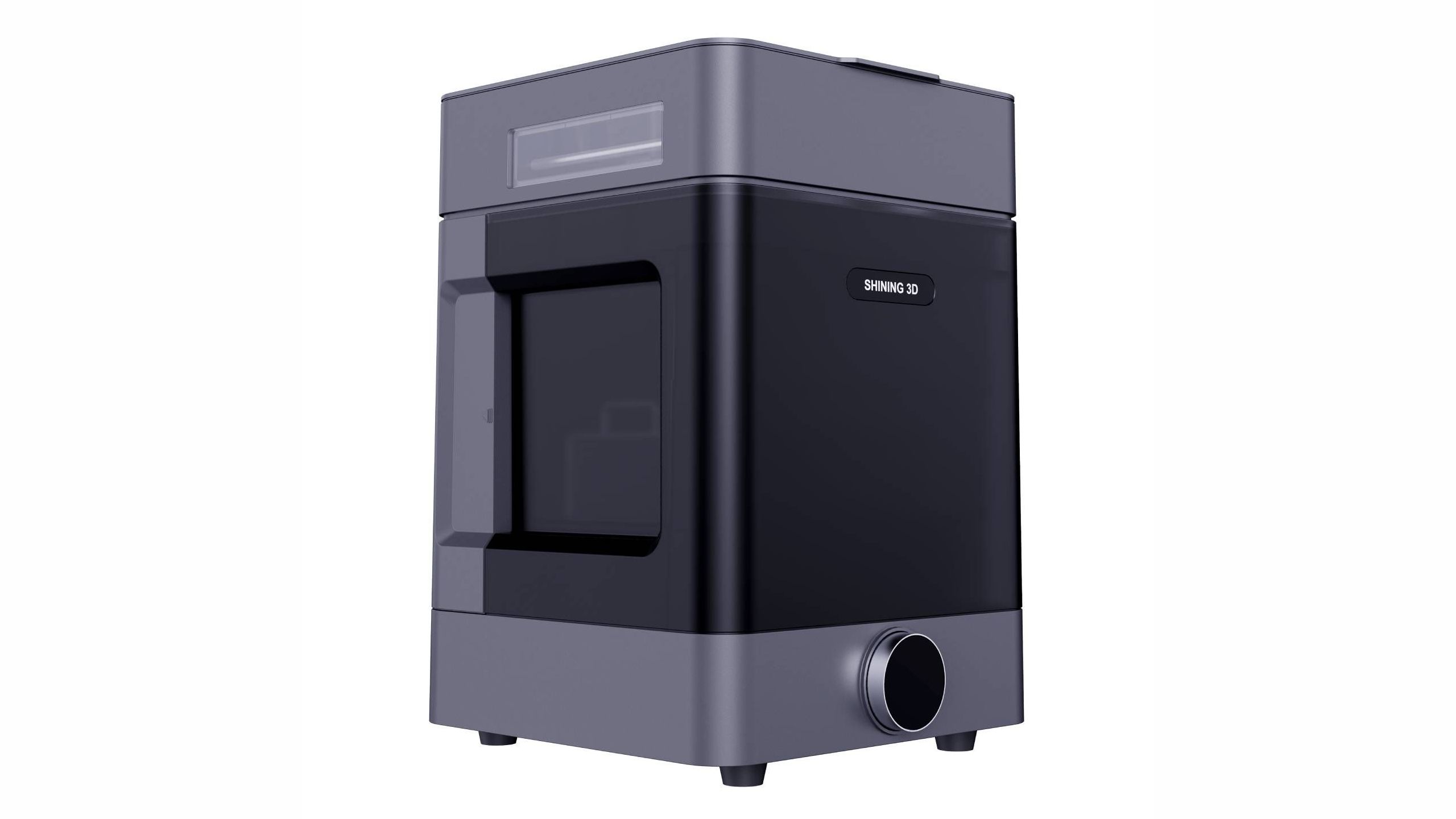

FabWash is a fully automated post-processing system that effortlessly handles multi-stage part release, washing, and drying directly from the build platform.
Key Features
Fully automated multi-stage part release, washing and drying
Material-specific predefined wash and dry settings
Automatic part-release motion logic designed to reduce the risk of damaging printed parts
User-programmable wash/dry profiles
Automatic build-platform detection and part-release mode detection
Wi-Fi connectivity for firmware and material-library updates
1.54-inch OLED display with rotary control knob
Leak-resistant electronics and automatic stop/start failsafe
Compatible with AccuFab D1s and AccuFab-L4D/L4K ceramic platforms with the appropriate adaptor
Applications
Automated washing of compatible 3D-printed resin parts
Removal of residual uncured resin from printed dental components
Cleaning of 3D-printed dental models, appliances and laboratory components
Controlled washing as part of the 3D-print post-processing workflow
Technical Specifications
Printer compatibility: AccuFab D1s; AccuFab-L4D/L4K* ceramic platforms
Product weight: 15 kg
Dimensions: 34 × 30.3 × 45 cm
Height when open: 75 cm
Bucket volume: 9.5 L
Maximum part size: 199 × 124 × 180 mm
Suggested operating environment: 10–30 °C; 30–70% RH
Suggested transportation environment: −10 °C to 70 °C
Agitation: magnetically coupled impeller
Compatible solvent: >75% alcohol, IPA, water
Power: 100–240 V / 2.0 A, 50/60 Hz; 24 V / 150 W
Connectivity: Wi-Fi
User controls: 1.54-inch OLED and rotary knob
Safety sensors: automatic start/stop; build-platform detection; solvent-bucket detection; safety-pressure sensor; emergency stop switch
Accessories: wash bucket, wash basket, scraper, brush, adaptor and quick guide
