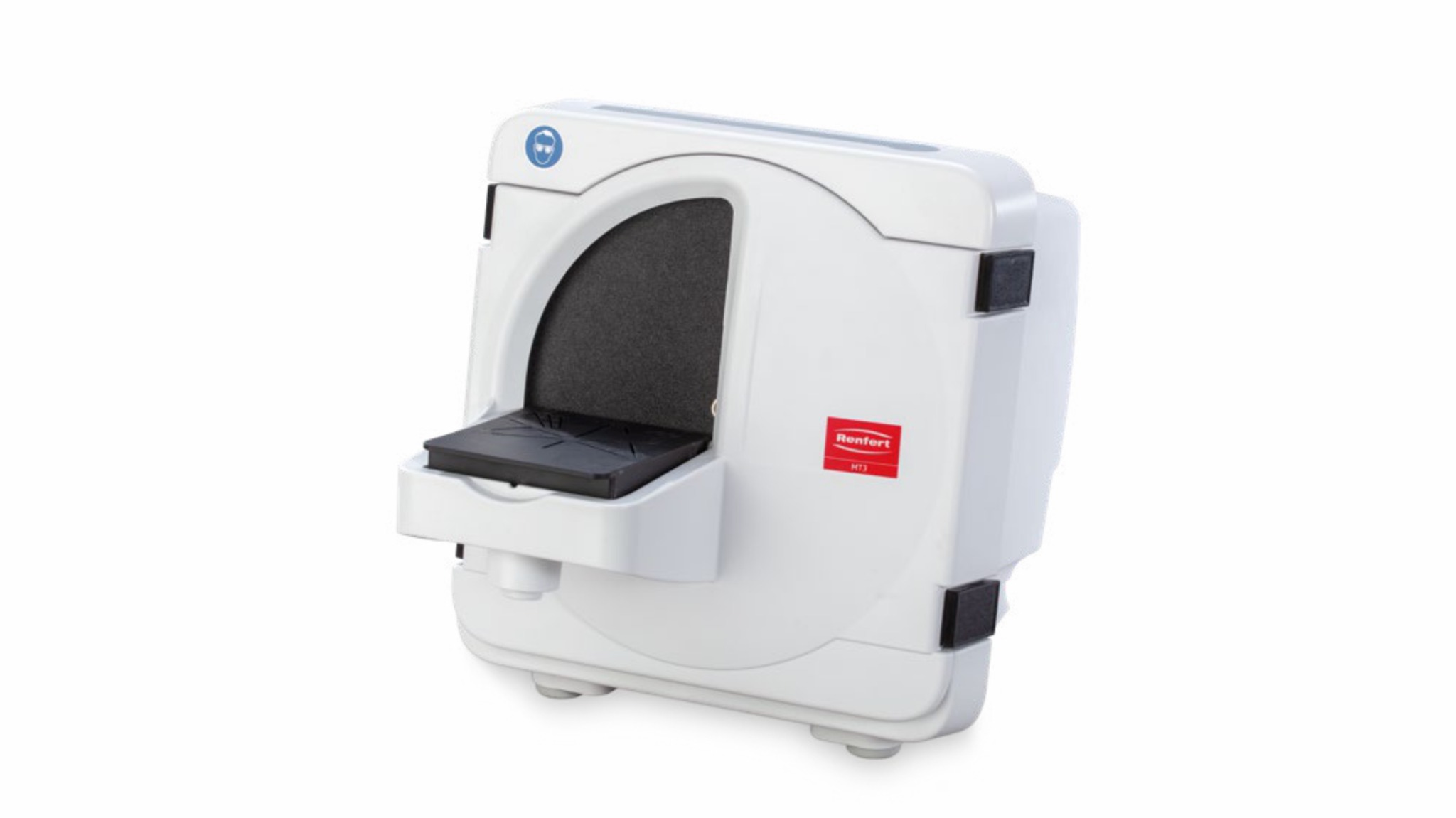

MT3
Brand :
Renfert
Product Type :
dental model trimmer
Renfert MT3 is a powerful wet model trimmer for dental plaster models. Its 90°/98° tipping mechanism, safety switch, optimized spray tube and 234 mm trimmer disc support efficient model preparation.
Key Features
Powerful wet trimmer motor
90°/98° tipping mechanism
Safety switch stops motor and water when front door opens
Uniform spray-tube coverage
10° unit inclination for improved visibility
Slotted angle lines for model guidance
Optional ORTHO guide retrofit
Klettfix or Marathon disc options
Applications
Dental model trimming
plaster model preparation
orthodontic model preparation
Technical Specifications
Mains voltage: 220–240 V / 100–120 V
Mains frequency: 50/60 Hz
Power consumption: 1,300 W (230 V); 1,325 W (120 V)
Motor performance P1: 1,300 W
Motor performance P2: 900 W
Rotational speed: 2,880–3,400 rpm
Maximum water consumption: 7 l/min
Water pressure: 1–5 bar
Drain/extraction connection: Ø36 mm
Trimmer disc diameter: Ø234 mm
Dimensions: 305 × 330 × 410 mm
Weight without disc: approx. 13.2 kg
