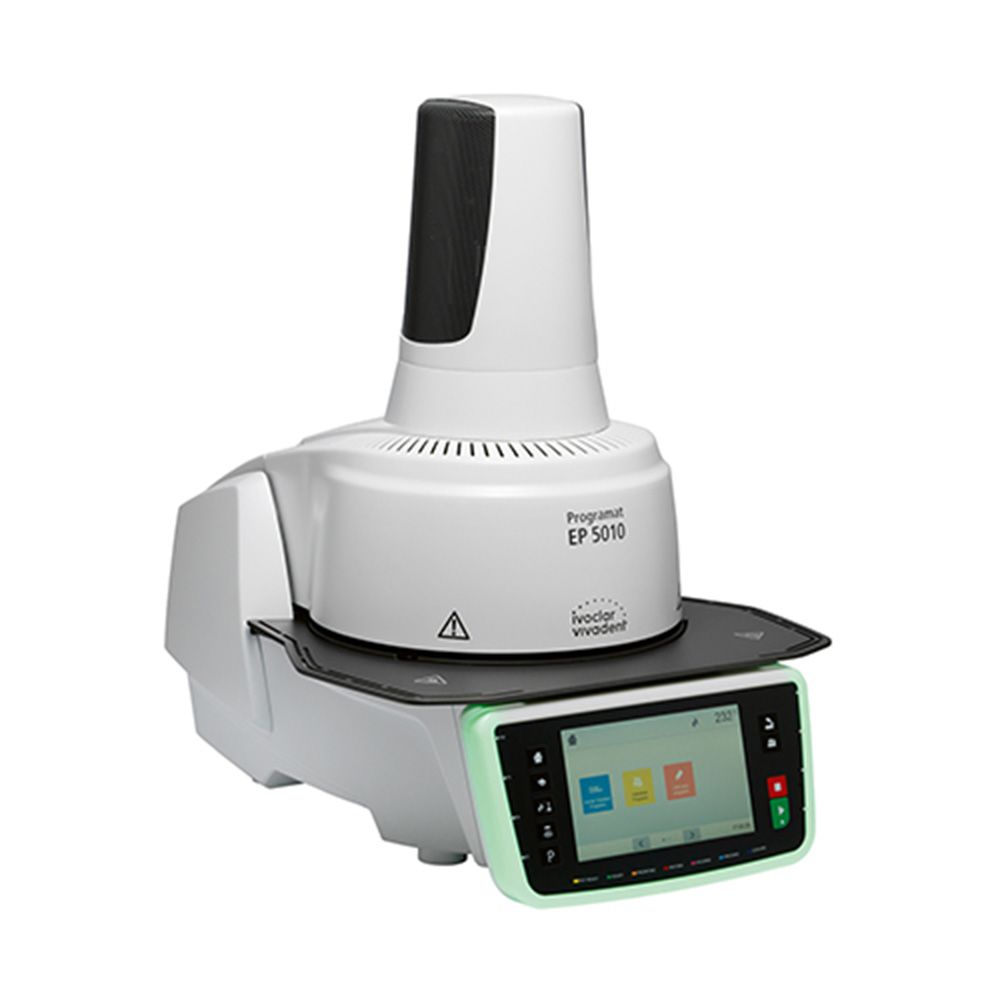

Programat EP 5010 G2
Brand :
Ivoclar
Product Type :
Dental press and ceramic firing furnace
Programat EP 5010 G2 is an advanced combination press and firing furnace upgraded with hardware-based Infrared Technology (IRT) for intelligent, automated investment ring detection.
Key Features
7-inch widescreen colour display
Electronic press drive with force sensor
QTK2 muffle technology with SiC bottom reflector
Double-valve vacuum technology and Electronic Vacuum Control System (EVCS)
Fully automatic press function (FPF)
Crack Detection System (CDS) and Thermo Shock Protection (TSP)
Preset Ivoclar press and firing programs
500 individual press programs and 20 firing programs
Automatic calibration with adjustable calibration interval and automatic double-range ATK2
IoT connectivity and PC/notebook operation
Programat Infrared Technology (IRT), WLAN kit, picture manager, preset timer, program copy assistant, IR-operated pre-drying, investment-ring recognition and temperature measurement, DSA; 3 USB ports plus USB host, Ethernet/LAN, WLAN, SD card and audio in/out
Applications
Pressing of compatible dental press ceramics, firing of compatible dental ceramics, combined pressing and firing workflows for indirect ceramic restorations, processing of IPS e.max Press restorations according to applicable press and firing programs, and advanced laboratory press-ceramic workflows for crowns, veneers and other indirect restorations.
Technical Specifications
Power supply: 110–120 V, 50–60 Hz or 200–240 V, 50–60 Hz
Maximum current: 12 A at 110–120 V; 8.5 A at 200–240 V
Maximum heating rate: 140 °C/min
500 individual press programs and 20 firing programs
25 software languages
QTK2 muffle with SiC bottom reflector; electronic press drive with force sensor
Warranty: 3 years (wear parts and consumables excluded)
