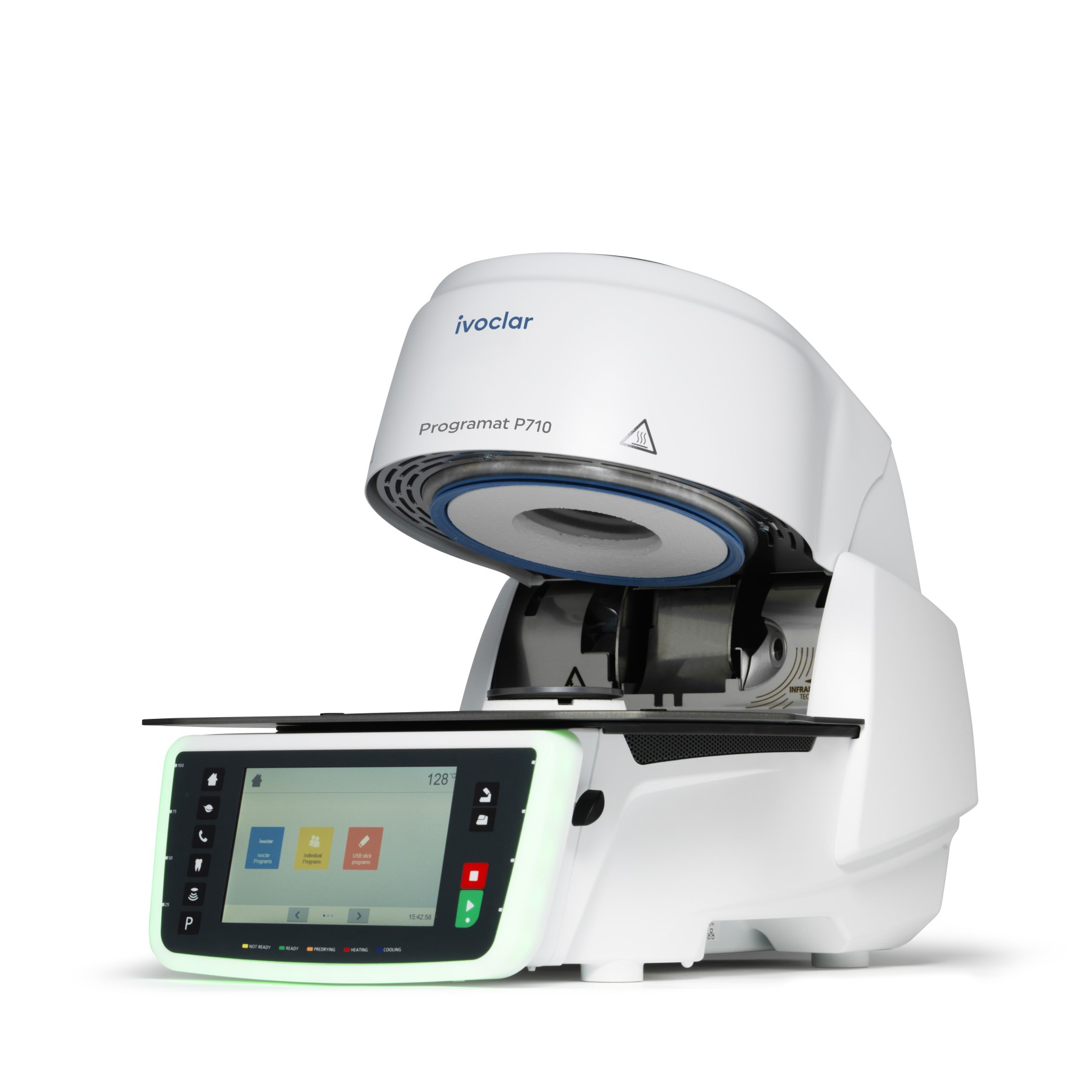

Programat P710 G2
Brand :
Ivoclar
Product Type :
Dental ceramic firing furnace
Programat P710 G2 is the premium flagship ceramic laboratory furnace equipped with a Digital Shade Assistant (DSA) and an expanded capacity for 700 custom
Key Features
7-inch widescreen colour display
QTK2 muffle technology with SiC bottom reflector
700 individual programs
Programat Infrared Technology (IRT) with IRT-controlled pre-drying and cooling
Preset Ivoclar firing programs and programmable pre-drying
QTK2 muffle technology with SiC bottom reflector; double-valve vacuum technology; EVCS; Power Saving Technology; Power Fail Save System; automatic double-range temperature calibration (ATK2); IoT connectivity; DSA; PDF viewer; glazing function assistant; picture manager; preset timer; 3-step heating; 2-step cooling; 3 USB ports, USB host, Ethernet/LAN and SD card/audio connections.
IRT-controlled cooling process; large cooling tray; integrated tong holder; removable furnace head; integrated cable duct; swivel keypad unit
Applications
Firing of compatible dental veneering and layering ceramics
Glazing and crystallization workflows for compatible ceramic systems
Processing of compatible IPS e.max ceramic restorations according to the selected firing program
Laboratory ceramic firing workflows for crowns, bridges and other indirect restorations
Controlled pre-drying and cooling of compatible dental ceramic restorations using infrared-controlled processing
Technical Specifications
Power supply: 110–120 V, 50–60 Hz or 200–240 V, 50–60 Hz
Maximum current: 12 A at 110–120 V; 8.5 A at 200–240 V
Maximum heating rate: 140 °C/min
Maximum firing temperature: 1200 °C
Firing chamber: 90 mm diameter × 80 mm height
Vacuum pump: maximum power consumption 250 W; final vacuum <50 mbar; only tested pumps should be used
Closed furnace: depth 495 mm; base width 320 mm; model-specific cooling-tray width per brochure
Weight: 18.7 kg
Warranty: 3 years (wear parts and consumables excluded)
