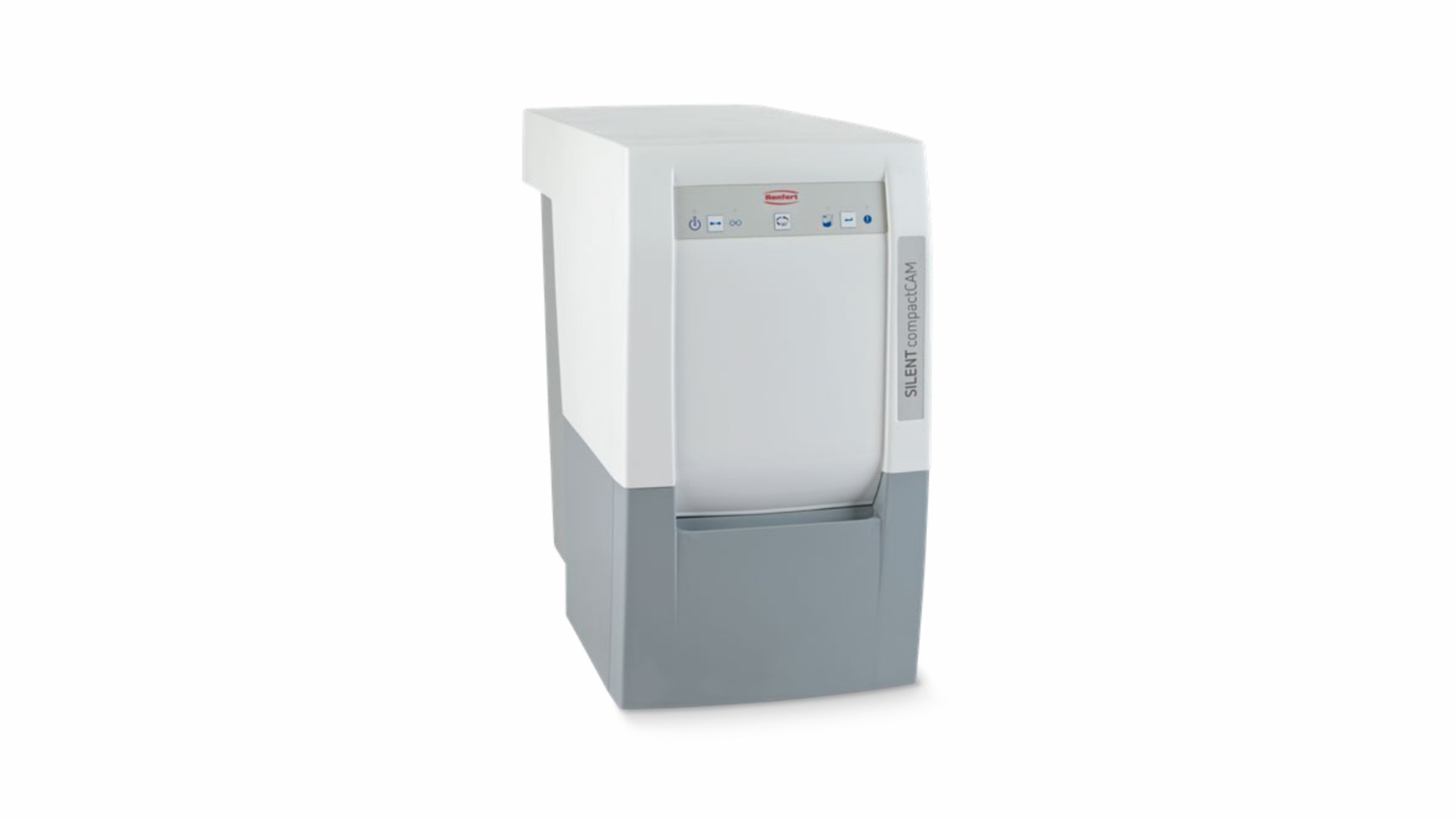

SILENT compactCAM
Brand :
Renfert
Product Type :
laboratory suction system
Renfert SILENT compactCAM is a compact, bag-free extraction unit for compact dental CAM systems. Its PLC interface enables bi-directional communication with compatible CAM equipment while automatic filter cleaning maintains suction performance.
Key Features
Designed for compact dental CAM systems
Bag-free dust collection
Automatic filter cleaning
Bi-directional PLC communication
Maximum volume flow of 2,500 l/min
Class M filtration
Low operating noise of 55 dB(A)
Quick motor replacement
RJ45 CAM interface
Applications
Dental CAM milling
compact milling systems
dry milling dust and chip extraction
Technical Specifications
Mains voltage: 230–240 V / 220 V / 120 V / 100 V
Power consumption: 490 W (230 V); 460 W (220 V); 480 W (120/100 V)
Maximum volume flow: 2,500 l/min
Maximum depression: 219 hPa
Filter: Class M, EN 60335-2-69
CAM interface: RJ45 socket
Suction hoses: 1
Sound pressure level: 55 dB(A)
Weight: approx. 13.2 kg
Dimensions: 245 × 440 × 500 mm
Suction fitting: 35 mm internal / 40 mm external
Dust collector capacity: approx. 2.6 l
