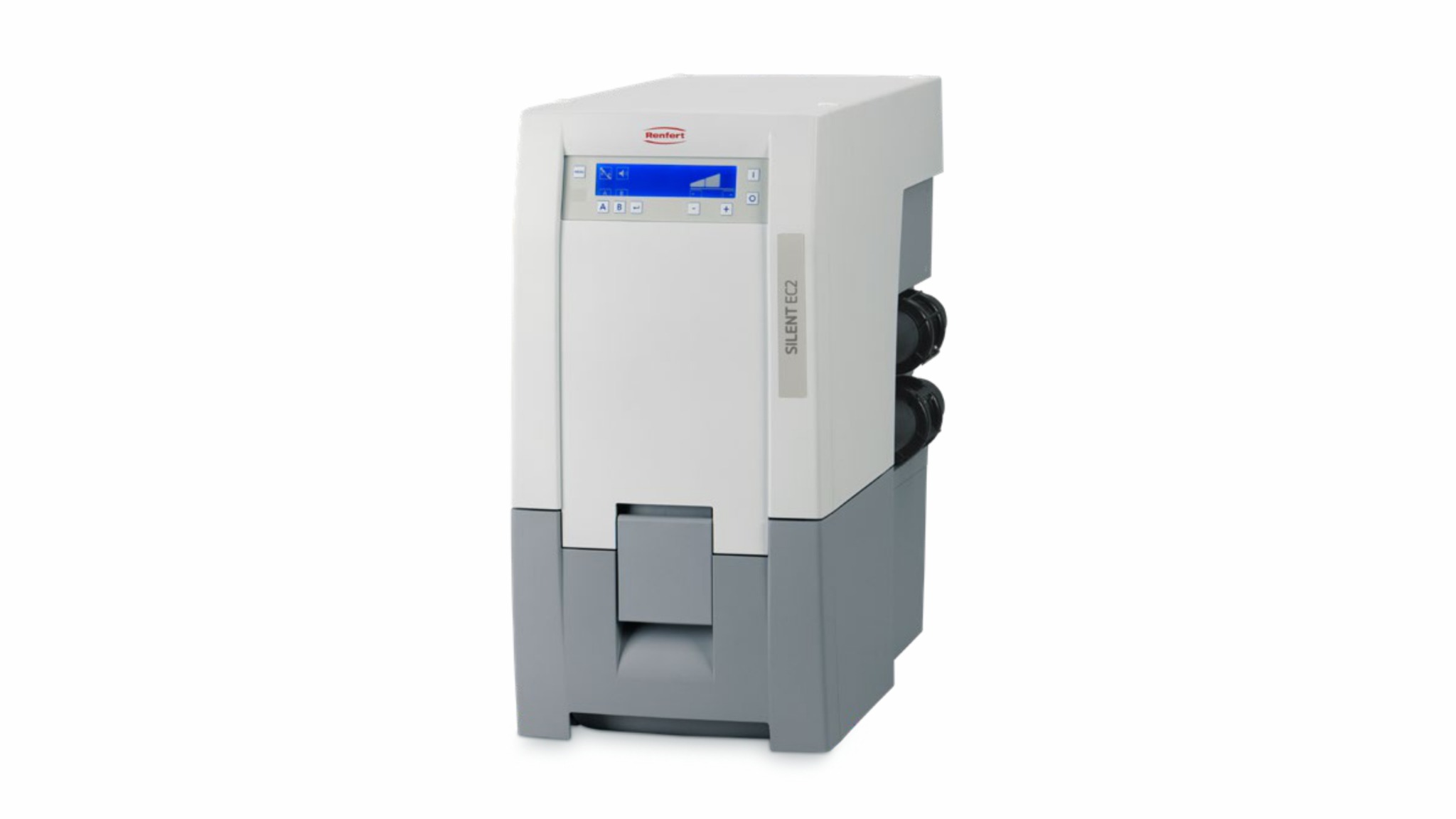

SILENT EC2
Brand :
Renfert
Product Type :
laboratory suction system
Renfert SILENT EC2 is a powerful, bag-free two-workbench extraction unit with two independently controlled suction ports, automatic filter cleaning and brushless EC motor technology.
Key Features
Two independently controlled suction ports
Brushless EC motor technology with 5,000 operating-hour guarantee
Bag-free dust collection
Automatic filter cleaning and suction re-adjustment
Maximum volume flow of 3,980 l/min
Class M filtration
Low operating noise of 55 dB(A)
Large multifunction display
External compressed-air connection for pinch-valve control
Applications
Two-workbench extraction
continuous laboratory dust extraction
grinding
trimming
finishing
Technical Specifications
Mains voltage: 220–240 V / 120 V / 100 V
Power consumption: 1,610 VA (230 V); 1,440 VA (120 V); 1,150 VA (100 V)
Maximum volume flow: 3,980 l/min
Maximum depression: 257 / 262 / 255 hPa depending on voltage
Filter: Class M, EN 60335-2-69
External connection pressure: 4.5–8 bar
Total connected power: 3,450 W (230 V); 1,800 W (120 V); 1,500 W (100 V)
Suction hoses: 2
Sound pressure level: 55 dB(A)
Weight: approx. 18.5 kg
Dimensions: 285 × 535 × 540 mm
Suction fitting: 45 mm internal / 50 mm external
Dust collector capacity: approx. 7 l
