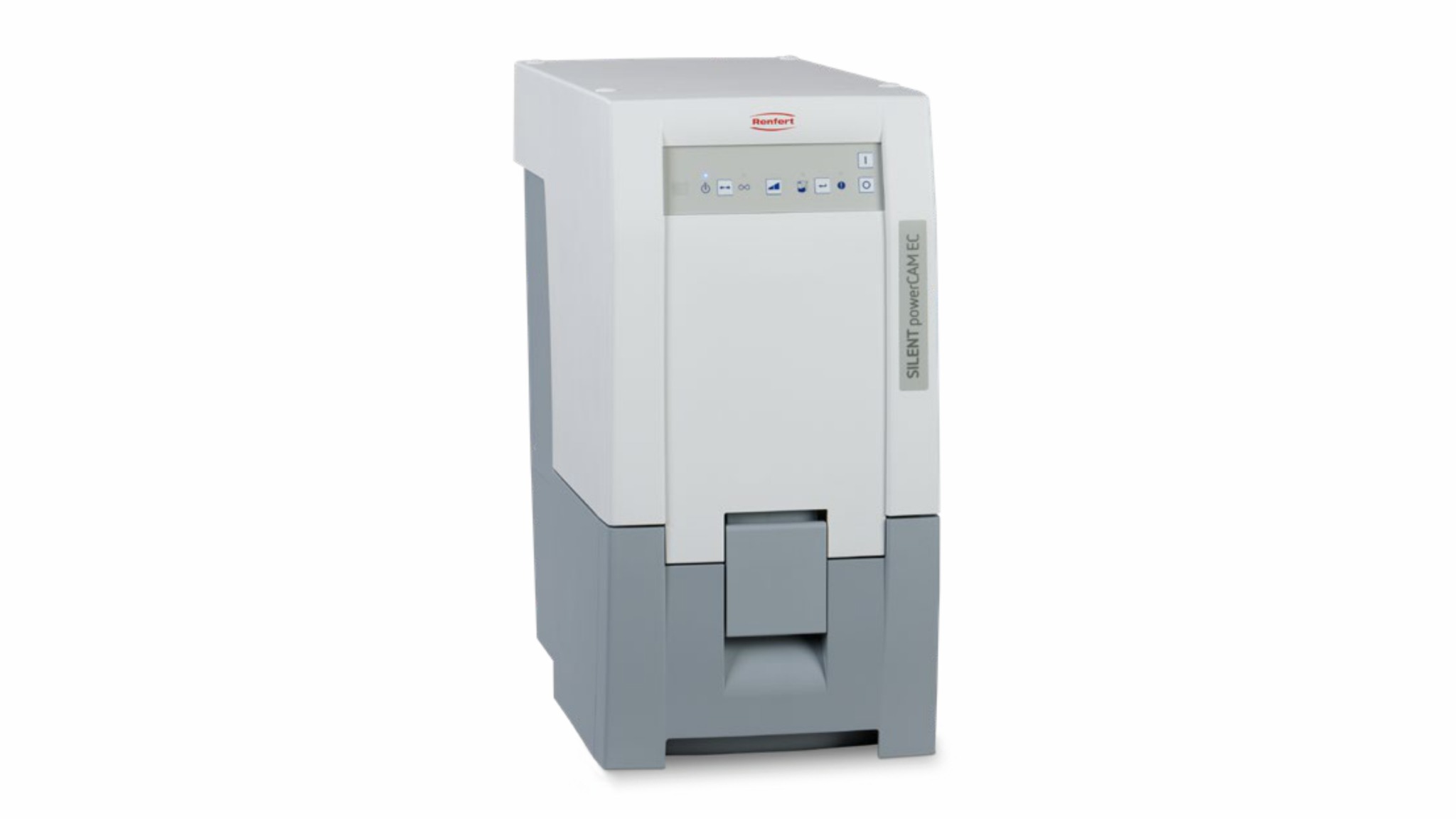

SILENT powerCAM EC
Brand :
Renfert
Product Type :
laboratory suction system
Renfert SILENT powerCAM EC is a powerful, bag-free extraction unit for heavily used CAM systems. Brushless EC motor technology, automatic filter cleaning and PLC communication are designed for high-throughput milling environments.
Key Features
Designed for heavily used dental CAM systems
Brushless EC motor technology with 5,000 operating-hour guarantee
Bag-free dust collection with automatic filter cleaning
Bi-directional PLC communication
Maximum volume flow of 3,984 l/min
Class M filtration
Low operating noise of 54.3 dB(A)
Tool-free filter and motor change
Fine milling dust disposal bag
Applications
High-throughput CAM milling
dental milling
fine milling dust extraction
Technical Specifications
Mains voltage: 220–240 V / 120 V / 100 V
Power consumption: 1,610 VA (230 V); 1,440 VA (120 V); 1,250 VA (100 V)
Maximum volume flow: 3,984 l/min
Maximum depression: 257 / 262 / 255 hPa depending on voltage
Filter: Class M, EN 60335-2-69
CAM interface: RJ45 socket
Suction hoses: 1
Sound pressure level: 54.3 dB(A)
Weight: approx. 18 kg
Dimensions: 270 × 535 × 540 mm
Suction fitting: 42 mm internal
Dust collector capacity: approx. 7 l
