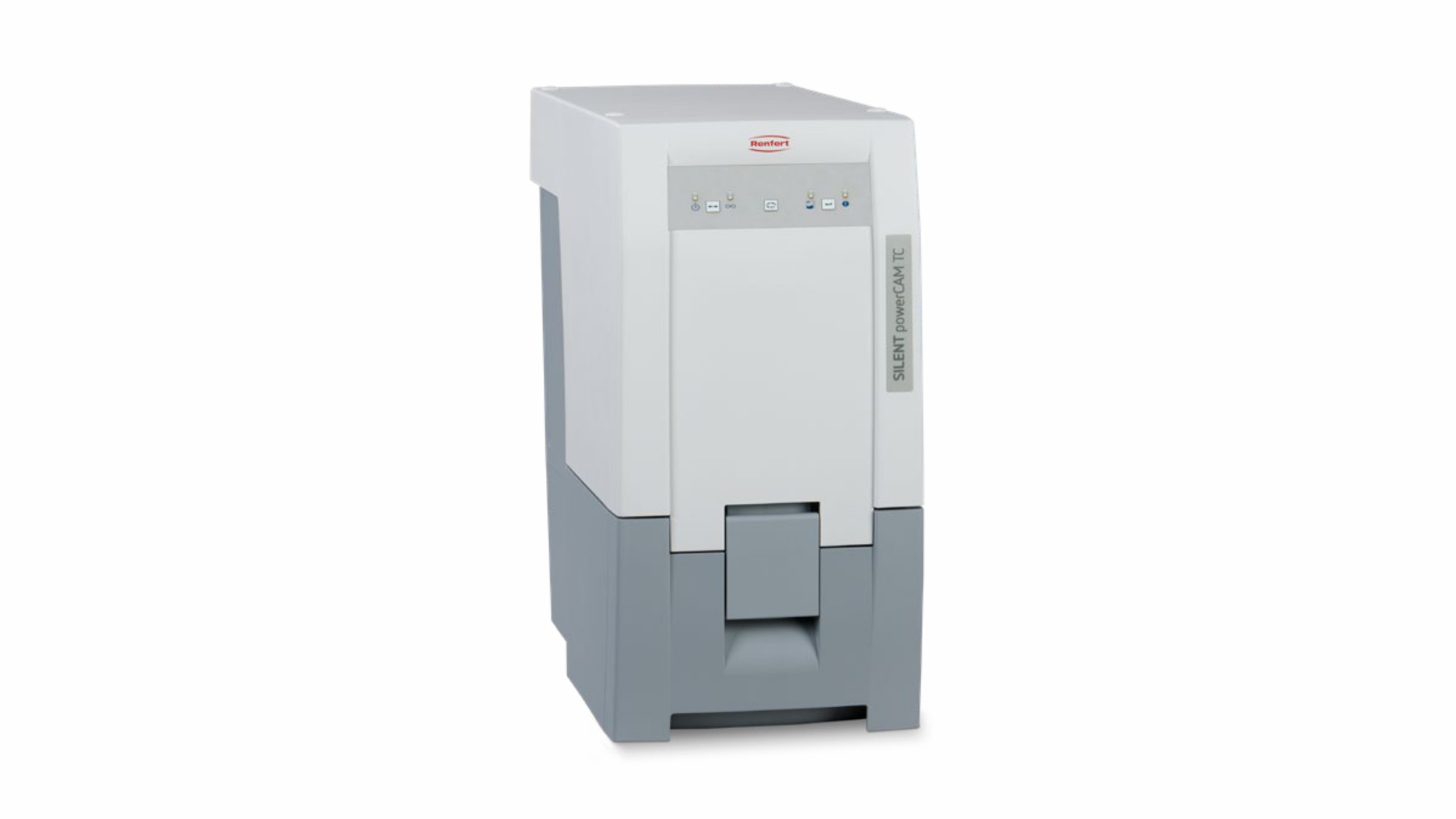

SILENT powerCAM TC
Brand :
Renfert
Product Type :
laboratory suction system
Renfert SILENT powerCAM TC is a powerful and economical CAM extraction unit with a durable collector motor, automatic filter cleaning and PLC communication for medium-to-large CAM systems.
Key Features
Designed for medium-to-large CAM systems
Durable collector motor
Bagless fine-filter technology
Automatic filter cleaning
Bi-directional PLC communication
Maximum volume flow of 3,980 l/min
Class M filtration
Low operating noise of 54.3 dB(A)
Quick motor replacement
Applications
Medium-to-large dental CAM systems
milling chip extraction
CAM dust management
Technical Specifications
Mains voltage: 220–240 V / 120 V
Power consumption: 850 W (230 V); 750 W (120 V)
Maximum volume flow: 3,980 l/min
Maximum depression: 281 hPa
Filter: Class M, EN 60335-2-69
CAM interface: RJ45 socket
Sound pressure level: 54.3 dB(A)
Weight: approx. 22 kg
Dimensions: 275 × 535 × 540 mm
Suction fitting: 45 mm internal / 50 mm external
Dust collector capacity: approx. 7 l
