SILENT TC2
Brand :
Renfert
Product Type :
laboratory suction system

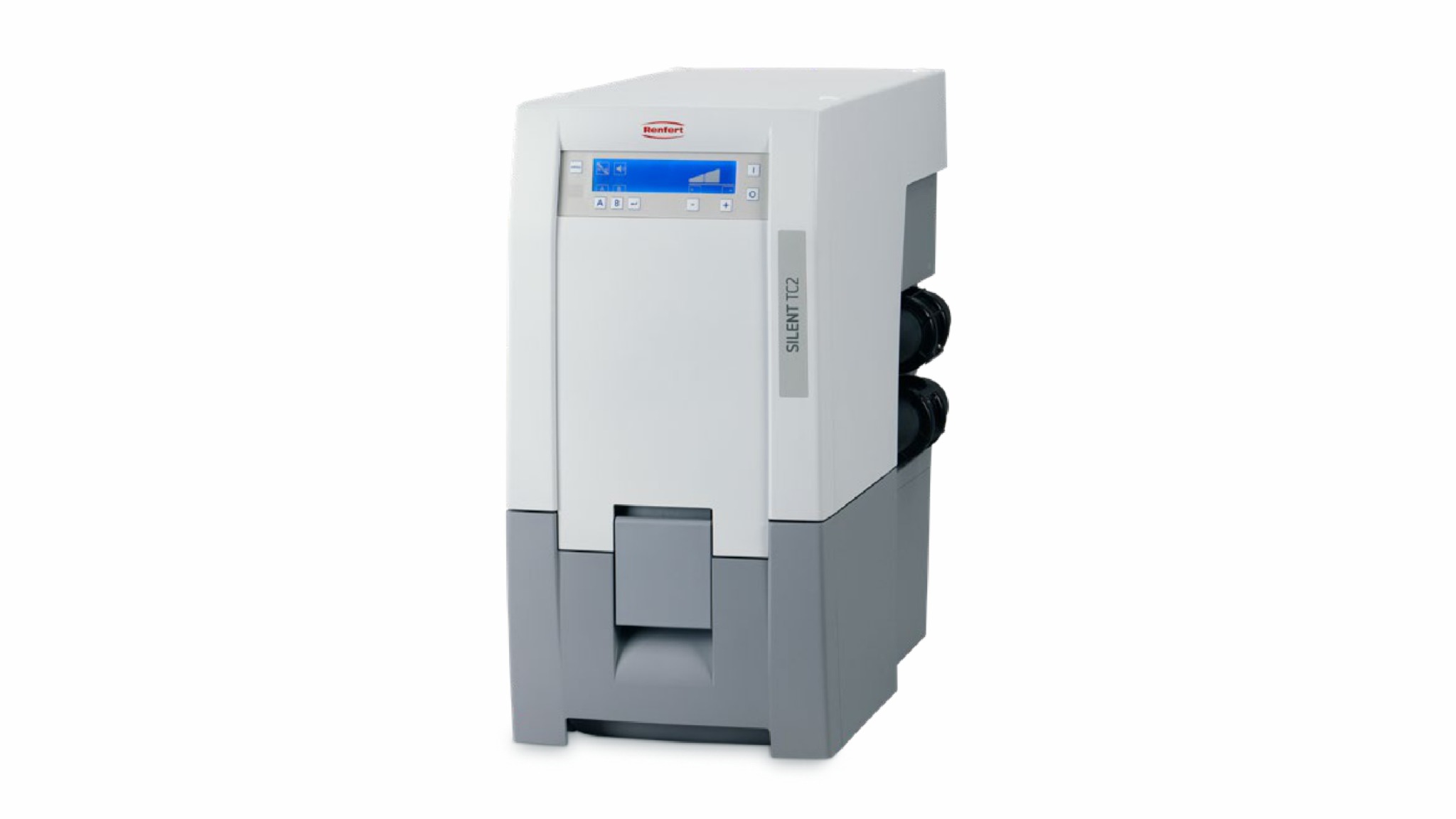

Renfert SILENT TC2 is a powerful, bag-free two-workbench extraction unit with two independently controlled suction ports, automatic filter cleaning and a durable collector motor.
Key Features
Two independently controlled suction ports
Bag-free dust collection with automatic filter cleaning
Durable collector motor with 1,000 operating-hour guarantee
Automatic suction adjustment
Maximum volume flow of 3,980 l/min
Class M filtration
Low operating noise of 55 dB(A)
Approx. 7 l dust collector
Quick motor replacement
Applications
Two-workbench extraction
grinding
trimming
polishing
laboratory dust management
Technical Specifications
Mains voltage: 220–240 V
Power consumption: 850 W (230 V)
Maximum volume flow: 3,980 l/min
Maximum depression: 281 hPa
Filter: Class M, EN 60335-2-69
Plug-in socket connected load: 2,000 W (230 V)
External connection pressure: 4.5–8 bar
Total connected power: 2,850 W (230 V)
Suction hoses: 2
Sound pressure level: 55 dB(A)
Weight: approx. 23 kg
Dimensions: 285 × 535 × 540 mm
Suction fitting: 45 mm internal / 50 mm external
Dust collector capacity: approx. 7 l
