Stratos 300
Brand :
Ivoclar
Product Type :
dental articulation system

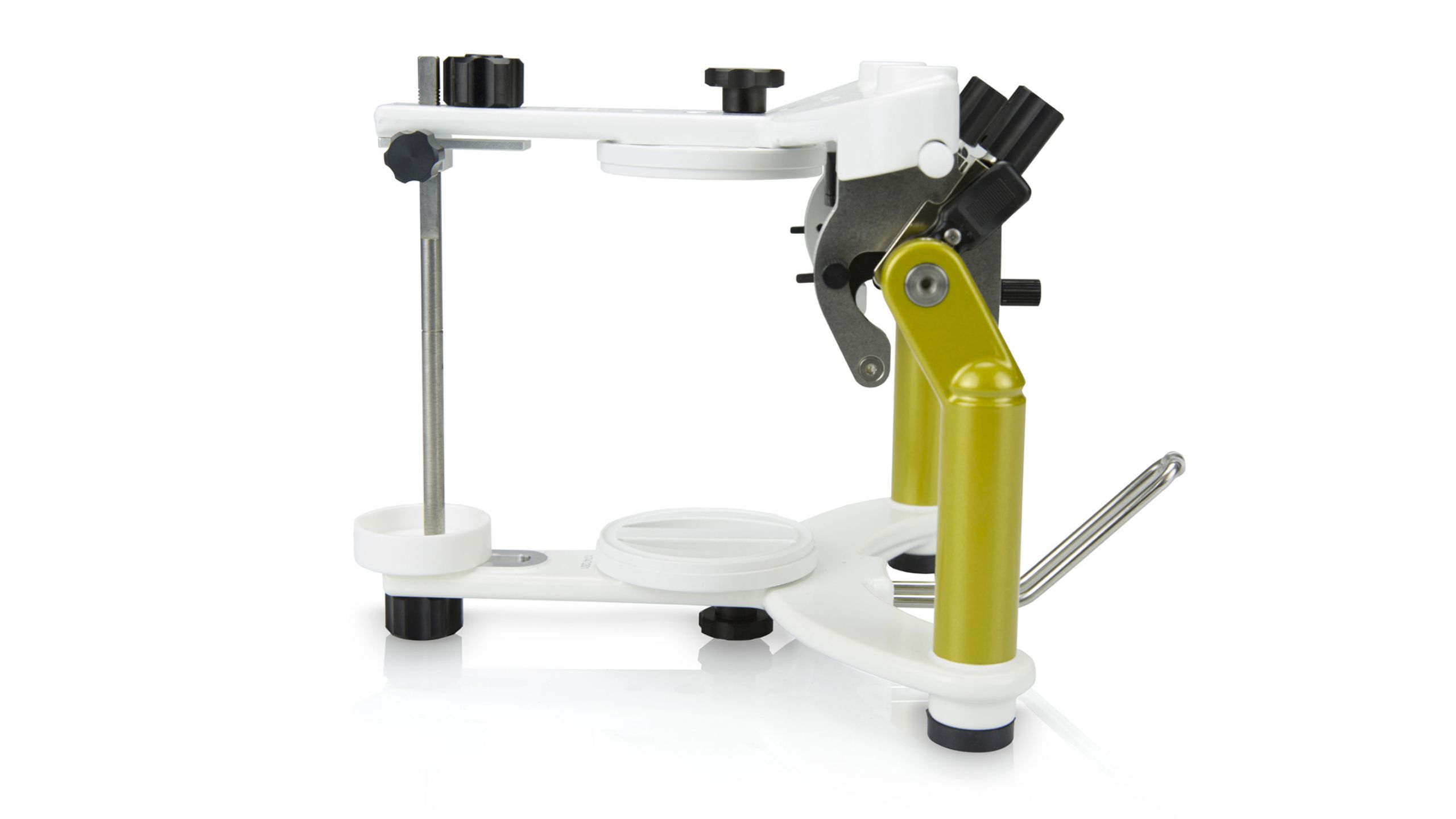

Stratos 300 is Ivoclar's individual articulator for functional simulations and demanding fixed, removable and implant-supported prosthetic workflows. It provides adjustable settings for Bennett movement, protrusion, side-shift and retrusion.
Key Features
Individual articulator for functional simulations
Adjustable Bennett angle: 0–30°
Adjustable protrusion angle: 0–60°
Immediate side-shift: 0–1.5 mm adjustable
Retrusive movement: 35°, with 0–2 mm adjustable distance
Protrusive centric shift: 0–4 mm adjustable
45° incline support holder and retentive or magnetic base-plate compatibility
Applications
Removable denture prosthetics, BPS System, fixed crowns and bridges, implant-supported dentures and functional diagnostics.
Technical Specifications
Condylar path curvature: radius 12.5 mm
Protrusive movement: 0–60° adjustable
Bennett movement: 0–30° adjustable
Retrusive movement: 35° with 0–2 mm adjustable
Side-shift: 0–1.5 mm adjustable
Protrusive centric shift: 0–4 mm adjustable
Includes centric locking catch, opening stop, incisal indicator and adjustable functional settings
Resin-coated surfaces for easy cleaning
