SILENT TS2
Brand :
Renfert
Product Type :
laboratory suction system

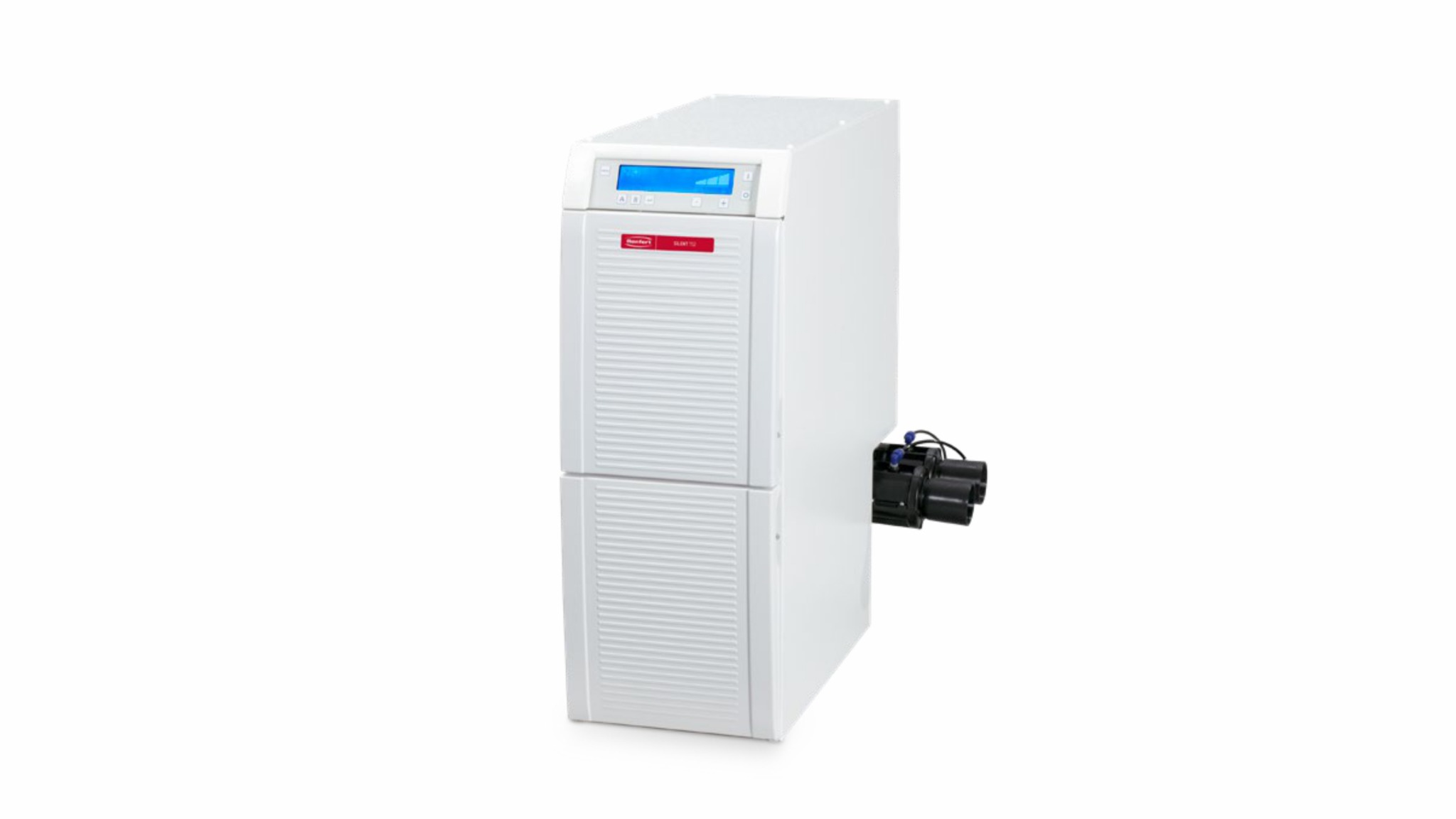

Renfert SILENT TS2 is a high-performance two-workbench extraction unit with two independently controlled suction ports, a durable collector motor and a double filter system. It is designed for demanding dental laboratory dust extraction.
Key Features
Two independently controlled suction ports
Durable collector motor with 1,000 operating-hour guarantee
Double filter system
Optional H/HEPA filter
Automatic suction adjustment
Maximum volume flow of 3,300 l/min
Low operating noise of 59 dB(A)
7.5 l dust collector
Multifunction display with handpiece calibration
Applications
Two-workbench extraction
laboratory grinding
trimming
polishing
dust-intensive dental laboratory workflows
Technical Specifications
Mains voltage: 220–240 V / 120 V
Power consumption: 1,400 W (230 V and 120 V)
Maximum volume flow: 3,300 l/min
Maximum depression: 200 hPa
Filter: Class M, EN 60335-2-69
Plug-in socket connected load: 2,000 W (230 V); 360 W (120 V)
External connection pressure: 4.5–8 bar
Suction hoses: 2
Sound pressure level: 59 dB(A)
Weight: approx. 27 kg
Dimensions: 224 × 591 × 584 mm
Suction fitting: 45 mm internal / 50 mm external
Dust collector capacity: 7.5 l
